Name: SMTCL PBC130m Horizontal Boring Milling Machine CNC Cylinder Boring Machine
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: PBC130m
Availability: InStock

Σπίτι > προϊόντα > Οριζόντια μηχανή τρύπησης και άλεσης >

SMTCL PBC130m Horizontal Boring Milling Machine CNC Cylinder Boring Machine

quick tool change

super-hard guideway

strong heavy-duty cutting capability

Τόπος καταγωγής:

ΚΙΝΑ

Μάρκα:

SMTCL

Πιστοποίηση:

CE ISO certification

Αριθμό μοντέλου:

PBC130m

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

Λεπτομέρειες για το προϊόν

Μάρκα:

SMTCL

Αριθμό μοντέλου:

PBC130m

CNC ή όχι:

CNC

Λέξη κλειδί:

Οριζόντια μηχανή τριβής CNC

Ταχύτητα ατράκτου:

10-2000 στροφές/δευτερόλεπτο

Διάσταση πάγκων εργασίας:

1400×1600 mm

Μέγιστο φορτίο του τραπεζιού εργασίας:

10 Τ

Πέρας διαδρομή X του τραπεζιού εργασίας:

2000 mm

Βιότοπη διαδρομή Y του κεφαλαίου:

1600 mm

Διαμήκη διαδρομήZ της στήλης:

1600 mm

Δρόμος W του σπινδέλου:

800 mm

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

Συσκευασία λεπτομέρειες

Το ξύλινο κιβώτιο, το τενεκεδένιο μπαούλο, άλλες ναυτικές συσκευασίες.

Χρόνος παράδοσης

45-60 ημέρες

Όροι πληρωμής

Τ/Τ, L/C, Western Union

Δυνατότητα προσφοράς

50 σετ το μήνα

ΣΧΕΤΙΚΑ ΠΡΟΪΟΝΤΑ

Βίντεο

SMTCL PBC130m Horizontal Boring Milling Machine CNC Cylinder Boring Machine

Βρείτε την καλύτερη τιμή

Βίντεο

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine

Βρείτε την καλύτερη τιμή

SMTCL T-Force βιομηχανίες αιολικής ενέργειας υψηλής ακρίβειας μηχανή CNC

Βρείτε την καλύτερη τιμή

Βίντεο

SMTCL TK6516 Heavy Cutting Spindle Diameter 160mm CNC Horizontal Milling and Boring Machine

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

+8613916455787

sales@huidijd.com

86-021-61195255

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

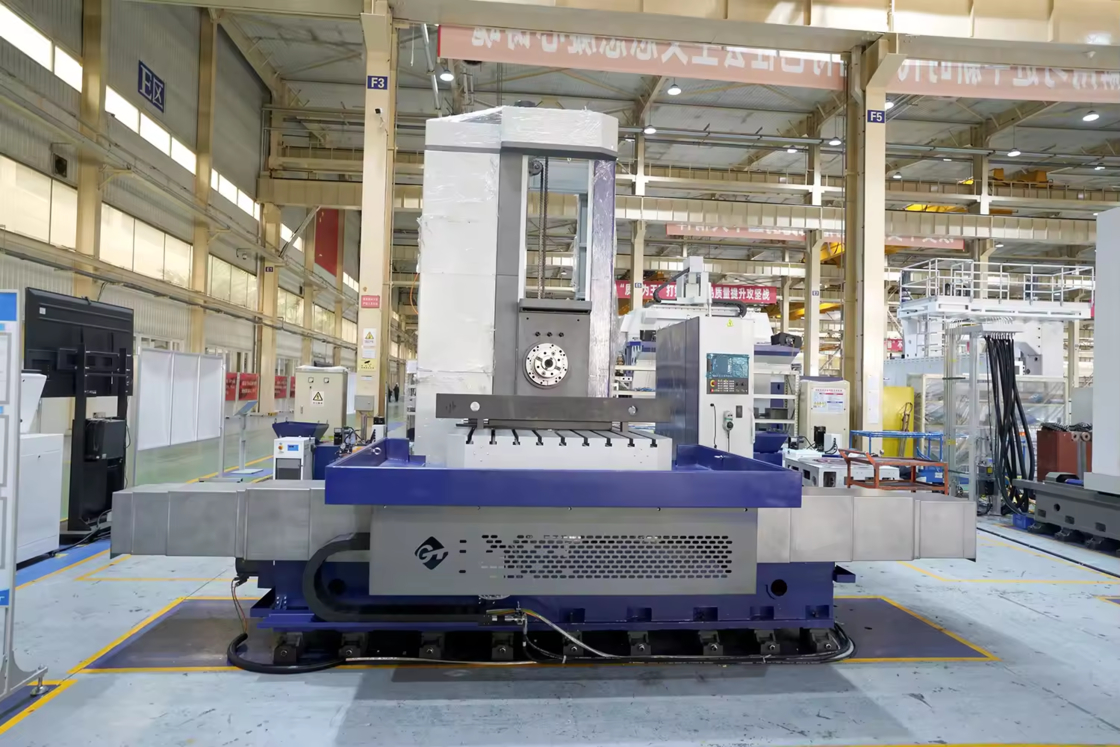

SMTCL PBC130m Horizontal Boring Milling Machine CNC Cylinder Boring Machine 0

Product Description:

SMTCL PBC130m Horizontal Boring Milling Machine CNC Cylinder Boring Machine

It is a general-purpose CNC horizontal milling and boring machine, and it is widely used in general machinery, engineering machinery, transportation and other industries.

Structural features:The machine tool is in a structure of T-shaped layout and single column side hanging box

Basic parts:Cast with high-strength cast iron material and resin sand process, with excellent stability and shock resistance

Spindle group:The spindle is driven by precision gear group meshing, with smooth operation and high accuracy

Guide rail:Y-axis and Z-axis adopt the two-linear & one-hard guide rail, taking into account both speed and rigidity

Drive:The X-axis and Z-axis adopt servo motor to drive the ball lead screw via the reduction gearbox, the Y-axis adopts the servo motor to directly drive the ball lead screw, and the B-axis is the classic double worm gear & worm structure.

Product Features:

1,Powerful Power Output: Spindle diameter reaches 130mm, maximum milling spindle torque is 2600 Nm, and power ranges from 25 to 30kW. It handles high-intensity machining tasks with ease, enabling smooth heavy-duty cutting.

2,Excellent Load-Bearing Capacity & Travel: Worktable load capacity is up to 15,000kg, suitable for large and heavy workpieces. X-axis travel offers options of 2000mm, 3000mm, and 4000mm; Y-axis travel ranges from 1600 to 2500mm; Z-axis travel ranges from 1600 to 2000mm, providing a wide machining range.

3,High Precision Guarantee: Adopts linear guides and ball screws, ensuring fast rapid traverse speed of each axis and accurate positioning. Equipped with well-known CNC systems such as Fanuc or Siemens (e.g., SIEMENS 828D) to meet strict machining precision requirements.

4,Efficient Tool Change System: Features automatic tool change function. the efficient tool change mechanism reduces auxiliary machining time and improves overall machining efficiency.

5,Stable & Reliable Structure: The machine adopts a T-shaped layout of longitudinal and transverse machine beds, offering excellent rigidity, stable performance, and high precision. It can also be equipped with various accessories such as CNC faceplates and vertical CNC turntables according to customer needs to expand the range of machining processes.

Product Details:

Product Paramenters:

ltems		Unit	PBC 130m	PBC 130fm
Workbench dimension		mm	1400×1600/ 1600×1800/ 2000×2000
Maximum load of workbench		T	10
Spindle diameter		mm	φ160
Spindle taper hole			IS0 7:24 N0.50
Tool shank specification			JT50/BT50
Spindle speed		r/min	10-2000
Facing head rotary speed		r/min	-	10-125
Power of main motor		kW	25/30
Maximum torque of spindle		Nm	2500/3000
X-axis stroke		mm	2000/3000/4000
Y-axis stroke		mm	1600/2000
Z-axis stroke		mm	1600/2000
Spindle stroke W		mm	8000
Facing head sliding block stroke U		mm	-	200
Workbench rotation B		°	0.01×360°
Feeding speed	X,Y,Z	mm/min	1-9000
	W	mm/min	1-3000
	U	mm/min	-	1-1000
	B	r/min	0-1
Rapid speed	X,Y,Z	m/min	10
	W	m/min	3
	U	m/min	-	3
	B	r/min	1
Positioning accuracy	X,Y,Z	mm	0.018/0.015(grating scale)	0.018/0.015(grating scale)
	W	mm	0.016
	U	mm	-	0.032
	B	''	12/8(gratingscale), 4×90°；6	12/8(gratingscale), 4×90°；6
Repositioning accuracy	X,Y,Z	mm	X/Z:0.008 ; Y:0.013
	W		0.014
	U	mm	-	0.018
	B	''	6
CNC system			SIEMENS 828D	SIEMENS 828D
Standard configuration: SIEMENS 828D Cooling and chip removal Centralized lubrication Headstock oil cooler Imported spindle bearings Spindle blowing function Workbench water tray Y-direction armor protection Guide rail protection Operator protection Air gun/water gun Anchor cushion iron Floodlight Cabinet air conditioner			Optional configuration: 24/40/60 tool magazine Accessory milling head Workbench area protection X/Y/-axis grating ruler Spindle internal cooling Pump station oil cooler Adaptive control Tool load abnormality detection Energy saving package SIMENS one FANUC 0I/31I system

OUR Service:

1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
