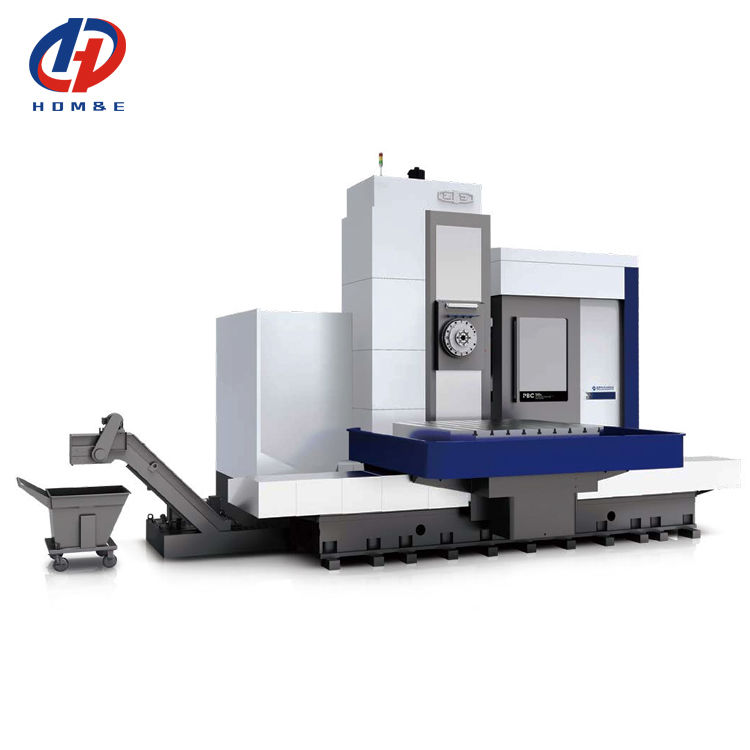

SMTCL TK6516 Heavy Cutting Spindle Diameter 160mm CNC Horizontal Milling and Boring Machine

Επωνυμία Μάρκας: SMTCL
Αριθμός μοντέλου: TK6516
Τόπος καταγωγής: ΚΙΝΑ
Πιστοποίηση: CE ISO certification
Ελάχιστη ποσότητα παραγγελίας: 1
Δυνατότητα Προμήθειας: 50 σετ το μήνα
Ετικέτες

Ψηφιακές οριζόντιες τρυπώντας μηχανές ανάγνωσης

800r/min τρυπώντας μηχανή πατωμάτων

Οριζόντιες τρυπώντας μηχανές του ISO

Λεπτομέρειες για το προϊόν

Μάρκα: SMTCL Αριθμό μοντέλου: TK6516
CNC ή όχι: CNC Λέξη κλειδί: Οριζόντια μηχανή τριβής CNC
Ταχύτητα ατράκτου: 10-1500 στροφές/λεπτο Διάσταση πάγκων εργασίας: 1600×1800 mm
Μέγιστο φορτίο του τραπεζιού εργασίας: 10/20/30 Τ Πέρας διαδρομή X του τραπεζιού εργασίας: 3000/3500/4000 mm
Βιότοπη διαδρομή Y του κεφαλαίου: 2000/2500/3000 mm Διαμήκη διαδρομήZ της στήλης: 2000 mm
Δρόμος W του σπινδέλου: 1000 mm
Επισημαίνω

Strong processing capacity

,

High-precision guarantee

,

High-efficiency cutting performance

Περιγραφή του προϊόντος

SMTCL TK6516 Heavy Cutting Spindle Diameter 160mm CNC Horizontal Milling and Boring Machine 0

Product Description:

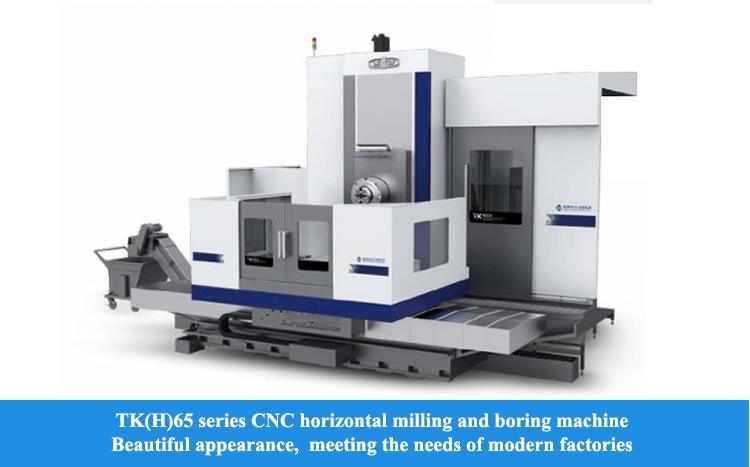

SMTCL TK6516 Heavy Cutting Spindle Diameter 160mm CNC Horizontal Milling and Boring Machine
High-rigidity CNC horizontal milling and boring machine can meet the heavy cutting demand, and it is widely used in general machinery, engineering machinery, mining, electric power and other industries.
Structural features:The machine tool is in a structure of T-shaped layout and single column side hanging box
Basic parts:Cast with high-strength cast iron material and resin sand process, with excellent stability and shock resistance
Spindle group:he spindle is driven by precision gear group meshing, with smooth operation and high accuracy

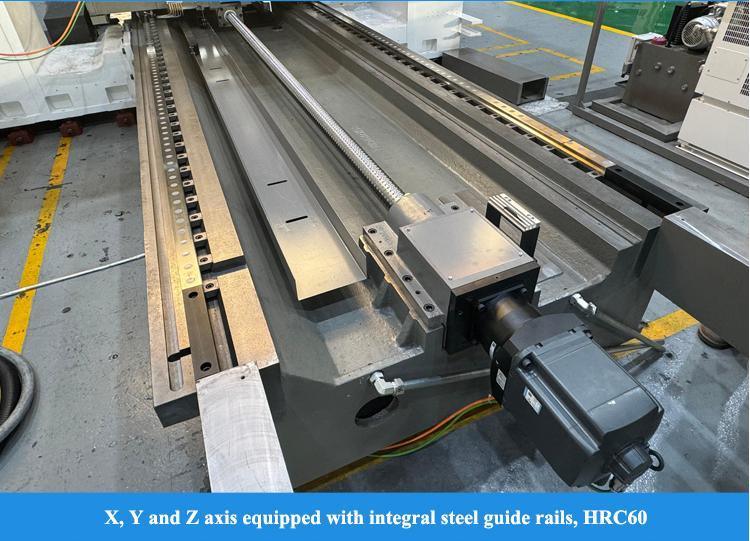

Guide rail:X-axis, Y-axis and Z-axis are equipped with the integrated steel-inserted guide rail to meet the rigid demand of heavy cutting
Drive:The X-axis and Z-axis adopt servo motor to drive the ball lead screw via the reduction gearbox,the Y-axis adopts the servo motor to directly drive the ball lead screw, and the B-axis is the classic double worm gear & worm structure

Product Features:

1. Spindle diameter 160mm, torque 4500Nm, strong heavy-duty cutting capability
2. Worktable load capacity 30 tons, X-axis travel 4 meters, suitable for extra-large workpieces
3. Siemens 828D system with 5-axis linkage, positioning accuracy 0.028mm/1000mm
4. 16-tool magazine + quick tool change, tool change time only 6 seconds, significantly improving efficiency
5. Integral aged bed + super-hard guideway, long-term operation precision stability over 95%

Product Details:

SMTCL TK6516 Heavy Cutting Spindle Diameter 160mm CNC Horizontal Milling and Boring Machine 1

Product Paramenters:
ltems
Unit
TK(H) 6516
TK(H)P 6516

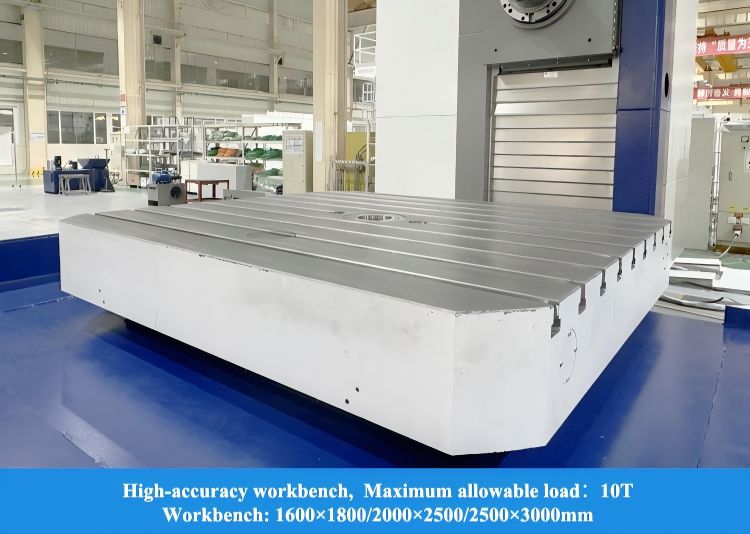

Workbench dimension
mm
1600×1800/ ; 2000×2500 ; 2500×3000
Maximum load of workbench
T
10/20/30

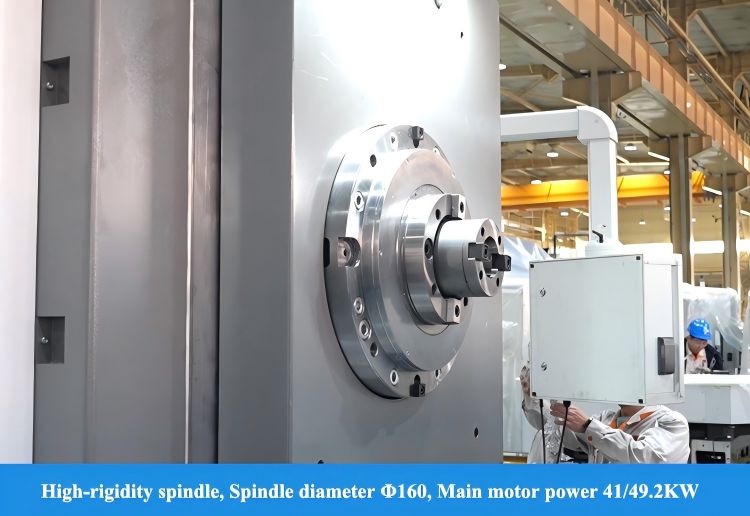

Spindle diameter
mm
φ160
Facing head diameter
mm
-
900
Tool shank specification

JT50/BT50
Spindle speed
r/min
10-1500
Power of main motor
kW
41/49.2
Maximum torque of spindle
Nm
3300/4000
Transverse travel X of workbench
mm
3000/3500/4000
Vertical travel Y of headstock
mm
2000/2500/3000
Longitudinal travel Z of column
mm
2000
Travel W of spindle
mm
1000
Travel U of facing head slide block
mm
-
330
Feeding speed
X,Y,Z
mm/min
1-6000
W
mm/min
1-3000
U
mm/min
-
1-3000
B
r/min
0-1
Rapid speed
X,Y,Z
m/min
10
W
m/min
3
U
m/min
-
3
B
r/min
1
Positioning accuracy
X,Y,Z
mm
X:0.028/0.022(grating scale)
Y:0.02/0.016(grating scale)
Z:0.02/0.016(grating scale)
W
mm
0.018
U
mm
-
0.032
B
''
8, 4×90°；6
Repositioning accuracy
X,Y,Z
mm
0.013
W
mm
0.016
U
mm
-
0.018
B
''
6

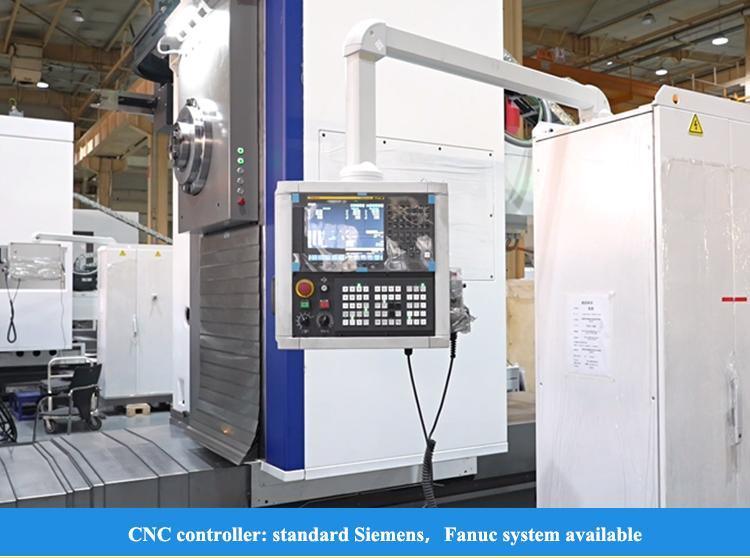

CNC system


SIEMENS 828D
Standard configuration:
SIEMENS 828D
Spindle blowing function
Guide rail protection
Cabinet air conditioner
Cooling and chip removal
Imported ball lead screw
Operator protection
Centralized lubrication
B-axis circular optical grating
Water gun/air gun Headstock oil cooler
Workbench water tray
Anchor cushion iron
Imported spindle bearings
Y-direction armor protection
Floodlight
Optional configuration:

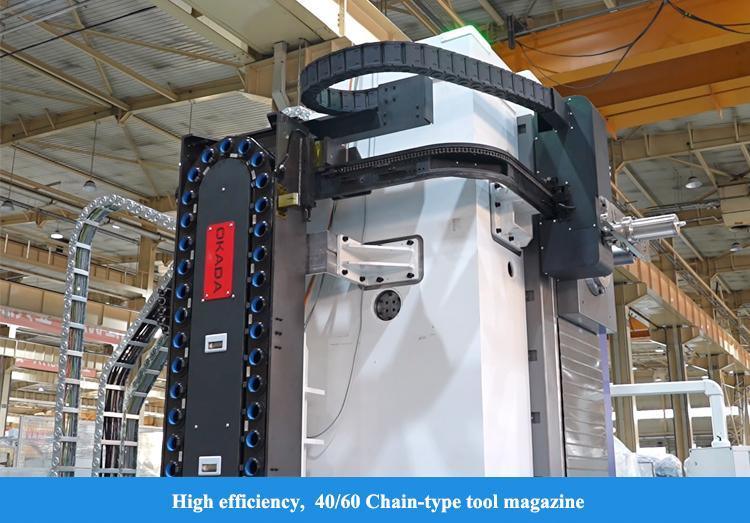

40/60 tool magazine
Pump station oil cooler
FANUC0I/31I system
Accessory milling head
Adaptive control
Workbench area protection
Tool load abnormality detection
X/Y/Z-axis grating ruler
Energy saving package
Spindle internal cooling
SIEMENS one

OUR Service:

1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL TK6516 Heavy Cutting Spindle Diameter 160mm CNC Horizontal Milling and Boring Machine 2
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
SMTCL TK6516 Heavy Cutting Spindle Diameter 160mm CNC Horizontal Milling and Boring Machine 3

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
