SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine

Spindle diameter 110mm

excellent heavy-duty cutting performance

suitable for large workpieces

Τόπος καταγωγής:

ΚΙΝΑ

Μάρκα:

SMTCL

Πιστοποίηση:

CE ISO certification

Αριθμό μοντέλου:

PBC110m

Επικοινωνήστε μαζί μας
Ζητήστε μια προσφορά
Λεπτομέρειες για το προϊόν
Μάρκα:
SMTCL
Αριθμό μοντέλου:
PBC110m
CNC ή όχι:
CNC
Λέξη κλειδί:
Οριζόντια μηχανή τριβής CNC
Ταχύτητα ατράκτου:
10-2000 στροφές/δευτερόλεπτο
Διάσταση πάγκων εργασίας:
1000 × 1250 mm
Μέγιστο φορτίο του τραπεζιού εργασίας:
5 Τ
Πέρας διαδρομή X του τραπεζιού εργασίας:
2000 mm
Βιότοπη διαδρομή Y του κεφαλαίου:
1500 χιλιοστά
Διαμήκη διαδρομήZ της στήλης:
1200 χιλ.
Δρόμος W του σπινδέλου:
550 mm
Όροι πληρωμής και αποστολής
Ποσότητα παραγγελίας min
1
Συσκευασία λεπτομέρειες
Το ξύλινο κιβώτιο, το τενεκεδένιο μπαούλο, άλλες ναυτικές συσκευασίες.
Χρόνος παράδοσης
45-60 ημέρες
Όροι πληρωμής
Τ/Τ, L/C, Western Union
Δυνατότητα προσφοράς
50 σετ το μήνα
ΣΧΕΤΙΚΑ ΠΡΟΪΟΝΤΑ
Επικοινωνήστε μαζί μας
86-021-61195255
Επικοινωνήστε τώρα
Περιγραφή του προϊόντος

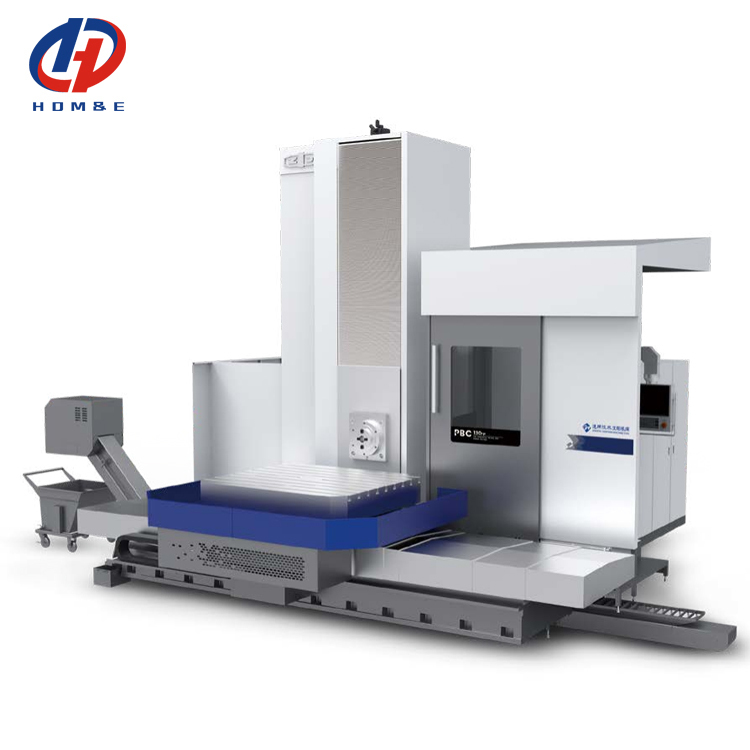

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 0

Product Description:

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine
It is a general-purpose CNC horizontal milling and boring machine, and it is widely used in general machinery, engineering machinery, transportation and other industries.
Structural features:The machine tool is in a structure of T-shaped layout and single column side hanging box
Basic parts:Cast with high-strength cast iron material and resin sand process, with excellent stability and shock resistance
Spindle group:The spindle is driven by precision gear group meshing, with smooth operation and high accuracy
Guide rail:Y-axis and Z-axis adopt the two-linear & one-hard guide rail, taking into account both speed and rigidity
Drive:The X-axis and Z-axis adopt servo motor to drive the ball lead screw via the reduction gearbox, the Y-axis adopts the servo motor to directly drive the ball lead screw, and the B-axis is the classic double worm gear & worm structure.

Product Features:

1. Spindle diameter 110mm, torque 2800Nm, excellent heavy-duty cutting performance

2. Worktable load capacity 5 tons, X-axis travel 2 meters, suitable for large workpieces

3. Full closed-loop control, positioning accuracy 0.018mm, precise machining

4. Automatic tool change system, tool change time 7 seconds, significantly improved efficiency

5. Integral aged bed, high precision stability during continuous operation

Product Details:

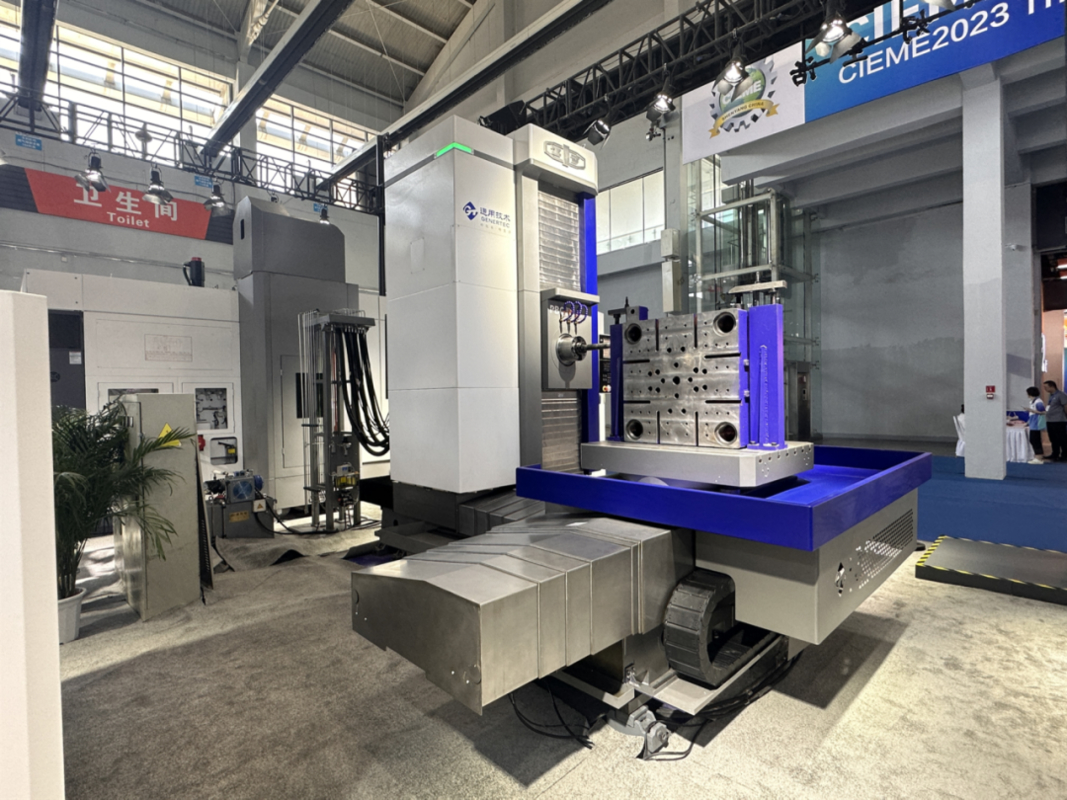

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 1

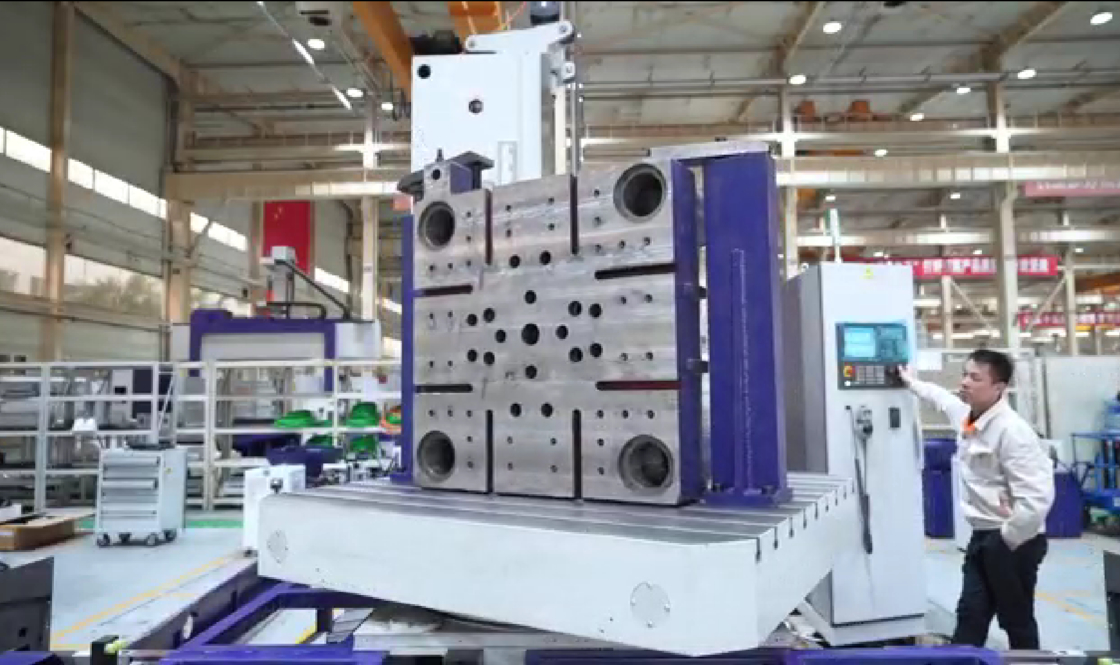

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 2

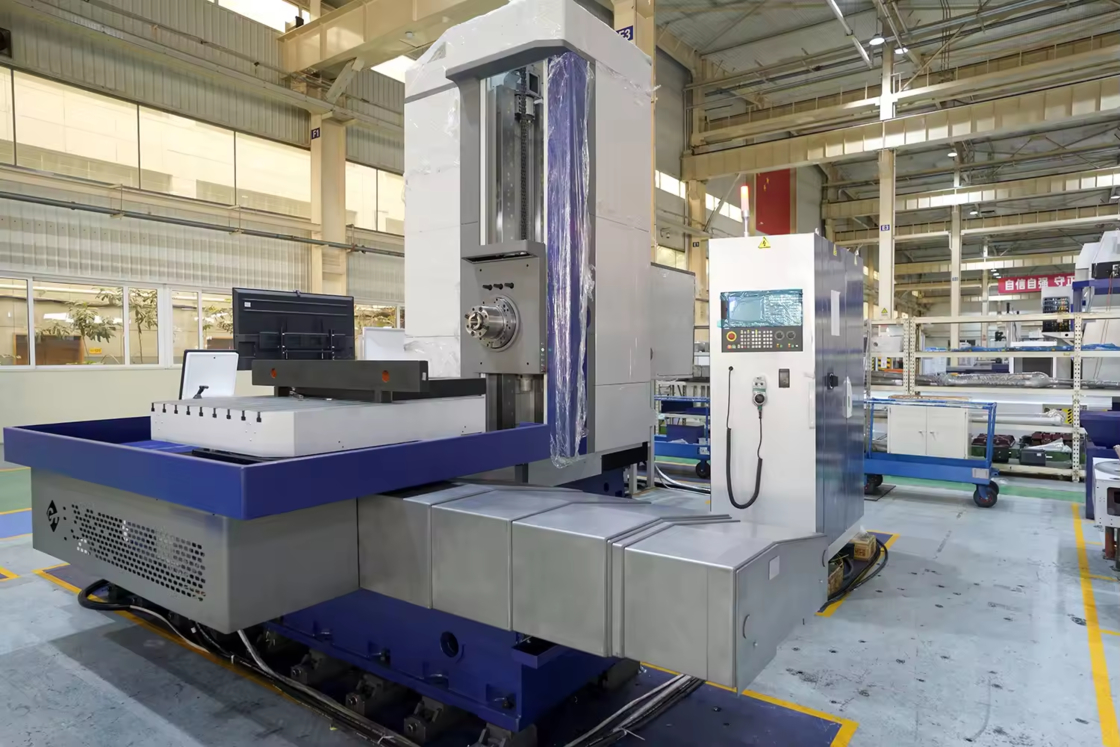

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 3

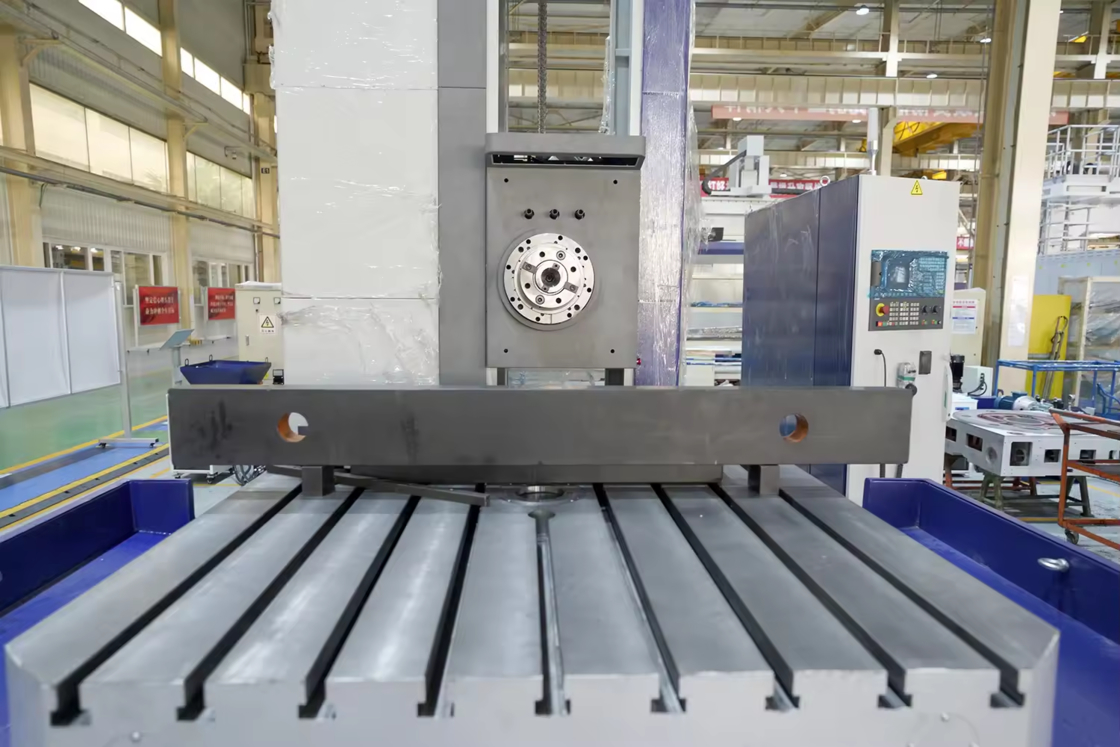

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 4
Product Paramenters:
ltems
Unit
PBC 110m
PBC 110fm
Workbench dimension
mm
1000×1250/ 1250×1400
Maximum load of workbench
T
5
Spindle diameter
mm
φ110
Spindle taper hole

IS0 7:24 N0.50
Tool shank specification

JT50/BT50
Spindle speed
r/min
10-2500
10-2000
Facing head rotary speed
r/min

10-200
Power of main motor
kW
17/20.4
19.5/23.4
Maximum torque of spindle
Nm
1300/1600
X-axis stroke
mm
2000
Y-axis stroke
mm
1500
Z-axis stroke
mm
1200
Spindle stroke W
mm
550
Facing head sliding block stroke U
mm
-
140
Workbench rotation B
°
0.01×360°
Feeding speed
X,Y,Z
mm/min
1-6000
W
mm/min
1-2000
U
mm/min
-
1-1000
B
r/min
0-1
Rapid speed
X,Y,Z
m/min
10
W
m/min
2.4
U
m/min
-
2.4
B
r/min
2
Positioning accuracy
X,Y,Z
mm
0.018/0.015(grating scale)
0.018/0.015(grating scale)
W
mm
0.016
U
mm
-
0.032
B
''
12/8(gratingscale),
4×90°;6
12/8(gratingscale),
4×90°;6
Repositioning accuracy
X,Y,Z
mm
0.01
W

0.014
U
mm
-
0.018
B
''
6
CNC system

SIEMENS 828D
SIEMENS 828D
Standard configuration:
SIEMENS 828D
Cooling and chip removal
Centralized lubrication
Headstock oil cooler
Imported spindle bearings
Spindle blowing function
Workbench water tray
Y-direction armor protection
Guide rail protection
Operator protection
Air gun/water gun
Anchor cushion iron
Floodlight
Cabinet air conditioner
Optional configuration:
24/40/60 tool magazine
Accessory milling head
Workbench area protection
X/Y/-axis grating ruler
Spindle internal cooling
Pump station oil cooler
Adaptive control
Tool load abnormality detection
Energy saving package
SIMENS one
FANUC 0I/31I system

OUR Service:

1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:

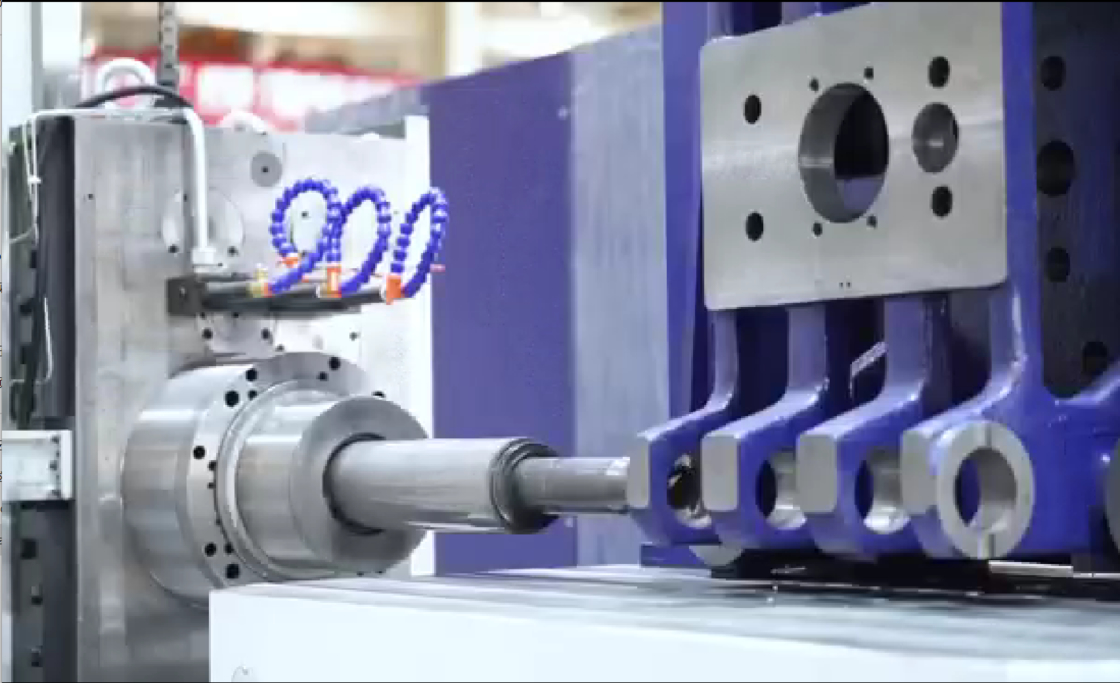

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 5
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:

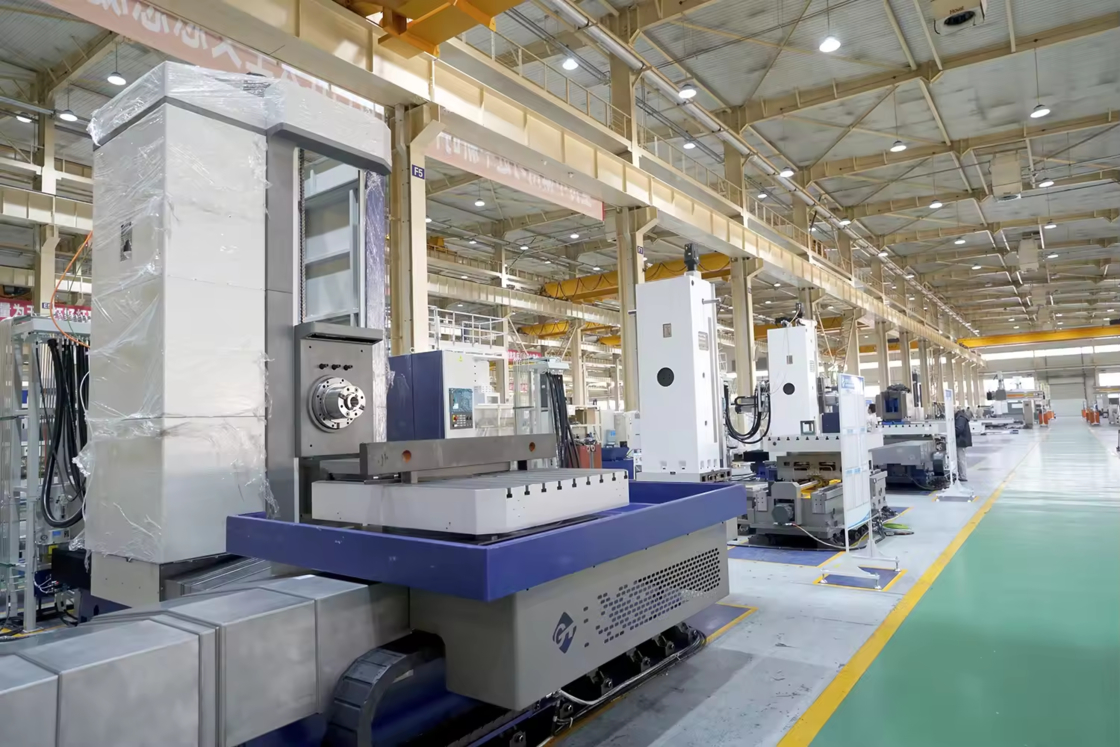

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 6

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
