Name: SMTCL High Rigidity Heavy CNC Lathe HTC80S Hard Rail Structure CNC Lathe
Brand: Shanghai HD ME Tech Co., Ltd.
SKU: HTC80S
Availability: InStock

Σπίτι > προϊόντα > CNC μηχανές τόρνου >

SMTCL High Rigidity Heavy CNC Lathe HTC80S Hard Rail Structure CNC Lathe

Hard Rail Structure

High Rigidity

Maximum turning length 4000mm

Τόπος καταγωγής:

Κίνα

Μάρκα:

SYMG SMTCL

Πιστοποίηση:

ISO certification

Αριθμό μοντέλου:

HTC80S

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

SMTCL High Rigidity Heavy CNC Lathe HTC80S Hard Rail Structure CNC Lathe

Λεπτομέρειες για το προϊόν

Όνομα προϊόντος:

HTC80S

Μέγιστη διάμετρος κοπής::

800/960 χλστ

Μέγιστο μήκος κοπής::

1000/1500/2000/3000/4000 χλστ

Μέγιστη διάμετρος κλίσης πάνω από το κρεβάτι::

¥1000

Μέγιστη διάμετρος περιστροφής στο διαδρόμιο::

¥800

Διάμετρος τρύπας σπινθήρα::

180 mm

Μέγιστη διάμετρος διάβασης::

162 mm

Πεδίο ταχύτητας του σπινδέλου::

20-1500r/min

Τυποποιημένη διάμετρος του ελαστικού::

18 "

Τύπος τυποποιημένου πύργου εργαλείου::

Οριζόντιο υδραυλικό φορείο εργαλείων 12 θέσεων

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

1 σετ

Τιμή

Διαπραγματεύσιμα

Συσκευασία λεπτομέρειες

Το ξύλινο κιβώτιο, το τενεκεδένιο μπαούλο, άλλες ναυτικές συσκευασίες.

Χρόνος παράδοσης

30-45 ημέρες

Όροι πληρωμής

T/T,L/C,Western Union

Δυνατότητα προσφοράς

45 σύνολα το μήνα

ΣΧΕΤΙΚΑ ΠΡΟΪΟΝΤΑ

Βίντεο

SMTCL HTC63H Fanuc Double Guide Rails High Precision Slant Bed CNC Lathe

Βρείτε την καλύτερη τιμή

Βίντεο

SMTCL HTC80H High Precision12-Station Horizontal Servo Tool Carriage Heavy CNC lathe

Βρείτε την καλύτερη τιμή

SMTCL High Rigidity Heavy CNC Lathe HTC80S Hard Rail Structure CNC Lathe

Βρείτε την καλύτερη τιμή

Τριχόπλευρο CNC CNC HTC63Q Μέγιστο μήκος κοπής 3000mm βαρύ κόψιμο σπινδύλα CNC οριζόντιο τερματομηχανή

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

+8613916455787

sales@huidijd.com

86-021-61195255

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

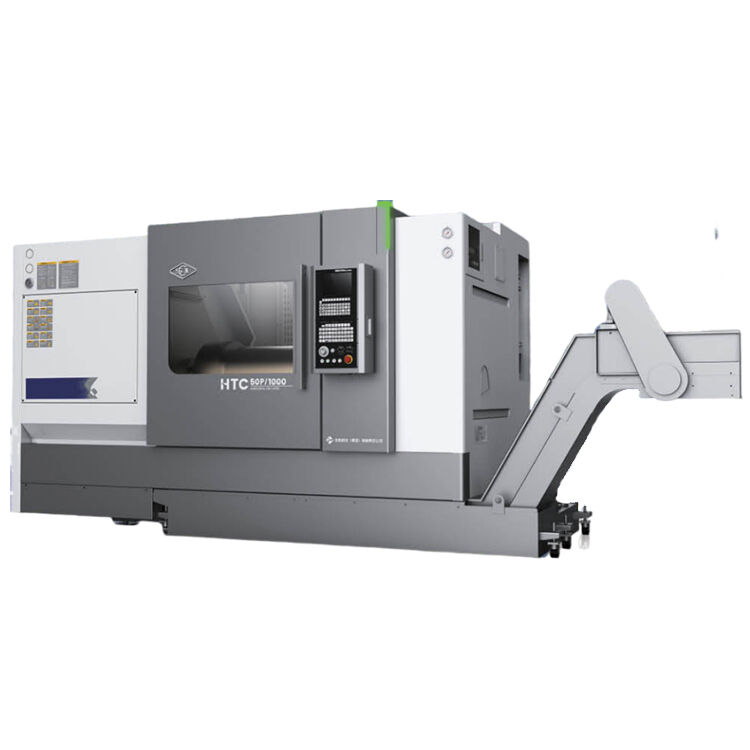

SMTCL High Rigidity Heavy CNC Lathe HTC80S Hard Rail Structure CNC Lathe 0

Product Description

^{SMTCL High Rigidity Heavy CNC Lathe HTC80S Hard Rail Structure CNC Lathe}

^{HTC80H/S series CNC horizontal lathe adopts hard rail structure, so the overall rigidity of the machine tool is strong. The spindle torque is large, and the through diameter is large, so it is suitable for machining various axis and disk parts, and it can effectively meet the parts machining demand of engineering machinery, automotive,metallurgy, casting and other industries.}

Product Features

1,High precision

◆ High-precision screw and guide rail
◆ High-precision spindle bearings
◆ Process standard quantification
◆ High-precision grating ruler

2,High efficiency
◆ System modular code application
◆ Complete functional conf iguration, enabling intelli gent production
◆ High-efficiency servo turret
◆ High-performance,heavy-duty cutting spindle

3,High rigidity
◆ High-quality cast iron body and other key castings
◆ Long-span headstock
◆ High-power and large-torque spindle
◆ High-rigidity tool carriage

Product Details

High-precision screws and guide rails

It uses high-quality imported C3-grade screws and H-grade guide rails, and is directly driven by servo motors to achieve excellent operating accuracy

High-precision spindle cylindrical roller bearings

It adopts high-quality imported P4 grade cylindrical roller bearings and cooperates with high-precision spindle to achieve excellent rotation accuracy.

High speed two axis

The two axis use imported screws and use pre-stretching technology to ensure fast and stable operation of the machine tool

Complete functional configuration, enabling

intelligent production

Different module configurations such as steady rest, sub-spindle, servo tailstock, and Y-axis can

be optional according to different workpiece requirements. It can realize multi-sequence processing of workpieces, and can also beequipped with workpiece measurement, tool

setter, automation modules, etc., to improve work efficiency.

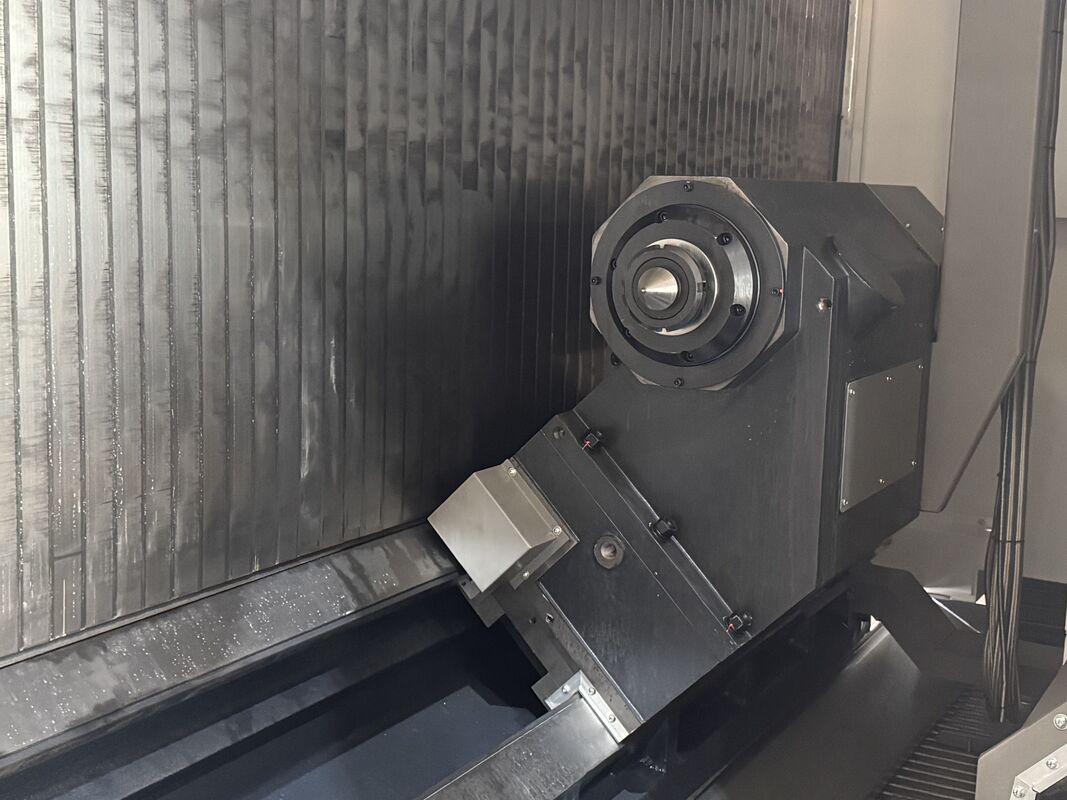

Small spindle tailstock

It is equipped with a small spindle structure tailstock, and internally installed tapered roller

bearings and angular contact ball bearings to improve the cutting rigidity of the tailstock end and ensure the cutting effect of long-axis parts.

High rigidity bed

The bed is a 45° inclined bed, with an optimized and reinforced rib structure inside. It is cast in one piece with high-quality castings, and the entire axis adopts a hard rail structure, which effectively improves dynamic stiffness. The joint between the bed and the headstock is scraped and ground by a double-rest surface, which further improves the cutting rigidity of the whole machine.

Product Paramenters

Items	Units	HTC80S series
Max.cutting dia.(shaft/disk)	mm	Φ800/Φ960
Maximum cutting length	mm	1000/1500/2000/3000/4000
Max.swing dia. over bed	mm	Φ1000
Max.swing dia.over bed gap	mm	Φ800
Spindle
Spindle nose model	-	A2-15
Front bearing inner dia.	mm	Φ240
Spindle taper and hole size		1:20;Φ190
Dia. of spindle hole Max.	mm	Φ180
Max.bar dia.	mm	Φ162

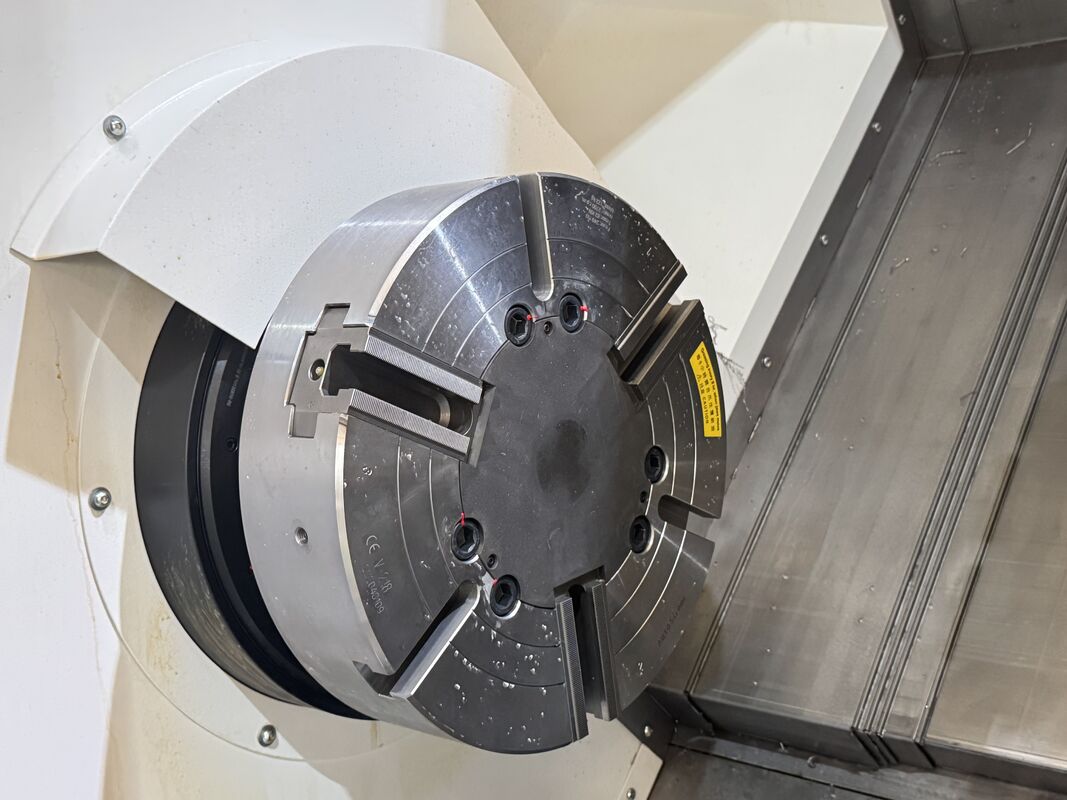

Standard chuck dia.	inch	18"
Spindle speed range	r/min	20-1500
Spindle max.torque	Nm	5400
Spindle speed series		Mechanical two gears
Main motor output power continuous/30 min.	kW	37/45
X/Z axis
X-axis rapid traverse speed	mm	12
Z-axis rapid traverse speed	mm	12
X-axis travel	mm	510
Z-axis travel	mm	1050/1550/2050/3050/4050
Tailstock
Tailstock travel	mm	850/1350/1850/2850/3850
Tailstock drive method		Saddle drag
Tailstock sleeve travel	mm	180
Tailstock sleeve dia.	mm	Φ230
Tailstock taper hole taper		Metric system 80
Tool turret

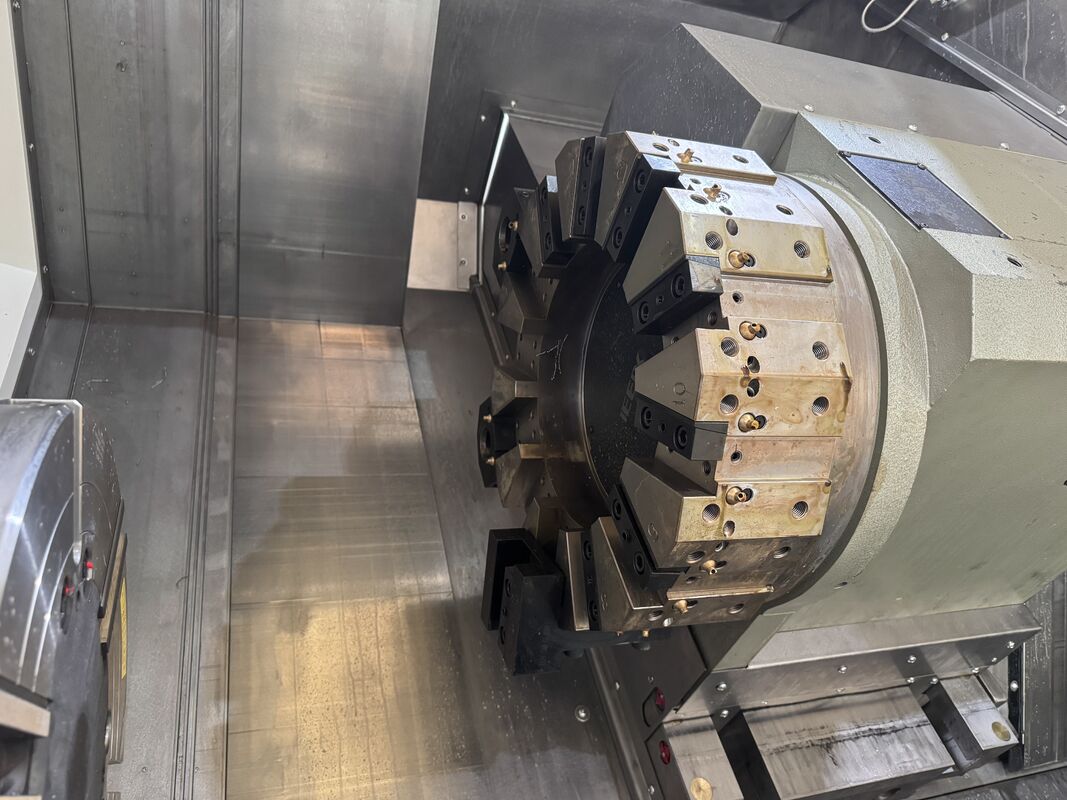

Tool turret form		12-station horizontal hydraulic tool carriage
Center height	mm	200
Tool size	mm	32×32
If could choose tool nearby	mm	yes
Maximum load capacity
Disc workpieces	kg	1400
Shaft workpieces	kg	5000
Others
Distance between spindle center and floor	mm	1214
Machine weight	kg	15500/18000/19500/21000/23500

OUR Service

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us

SMTCL High Rigidity Heavy CNC Lathe HTC80S Hard Rail Structure CNC Lathe 1

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level. Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

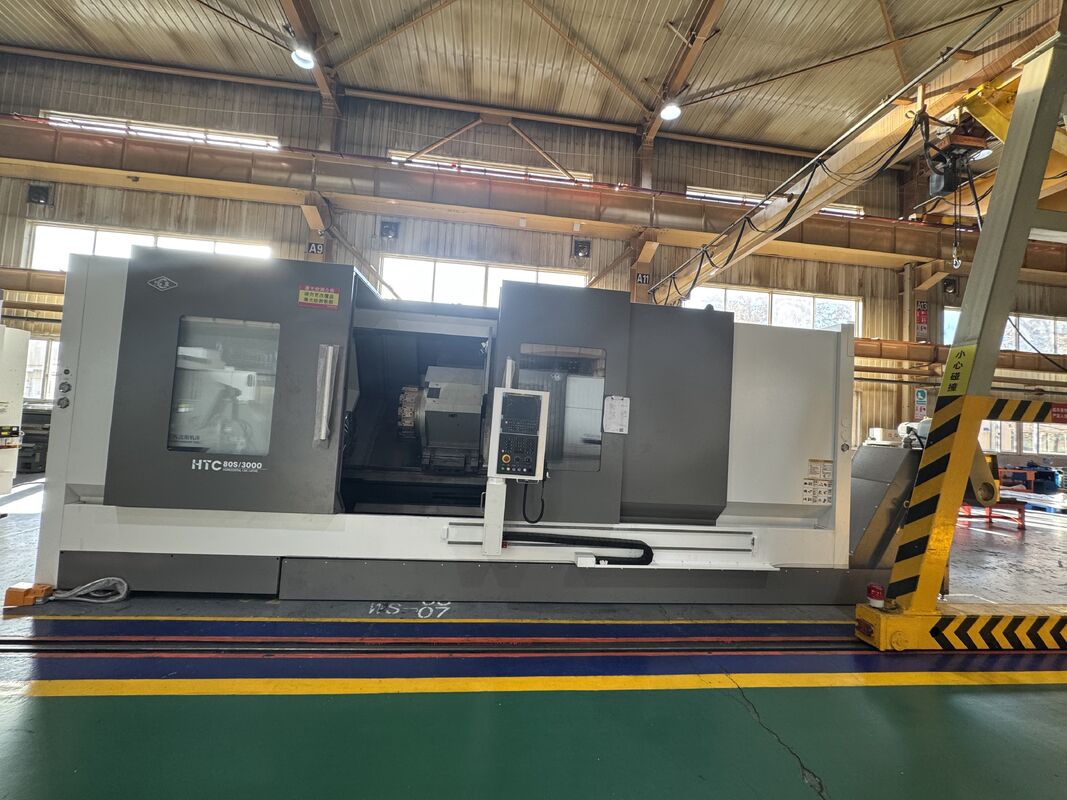

Our Factory

SMTCL High Rigidity Heavy CNC Lathe HTC80S Hard Rail Structure CNC Lathe 2

FAQ

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
