SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center

SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center

Pump Rotor Shaft Processing

CNC Turning Center

Τόπος καταγωγής:

Κίνα

Μάρκα:

SMTCL

Πιστοποίηση:

CE ISO certification

Αριθμό μοντέλου:

Τ5.2-500Q

Επικοινωνήστε μαζί μας
Ζητήστε μια προσφορά
Λεπτομέρειες για το προϊόν
Μάρκα:
SMTCL
Αριθμό μοντέλου:
T5,2-500Qm
Σύστημα ελέγχου Cnc:
GSK/FANUC/SIEMENS
Cnc ή όχι:
CNC
Λέξη κλειδί:
Τεχνητή μηχανή CNC με κλιμακωτό κρεβάτι
Μέγιστο. Κοιτάζω πάνω από το κρεβάτι:
Φ560
Μαξ. Γύρνα πάνω από τη διαφάνεια.:
Φ350
Μαξ. Γυρισμένο μήκος:
500 χλστ
Ταξίδι (άξονας Χ):
200 χλστ
Ταξίδι (άξονας Z):
560 mm
Χ/Ζ ταχεία διαδρομή:
20 m/min
Μέγιστο. Ταχύτητα ατράκτου:
4500 r.p.m
Σταθμοί σταθμών εργαλείων:
8
Όροι πληρωμής και αποστολής
Ποσότητα παραγγελίας min
1
Συσκευασία λεπτομέρειες
Το ξύλινο κιβώτιο, το τενεκεδένιο μπαούλο, άλλες ναυτικές συσκευασίες.
Χρόνος παράδοσης
45-60 ημέρες
Όροι πληρωμής
Τ/Τ, L/C, Western Union
Δυνατότητα προσφοράς
50 σετ το μήνα
ΣΧΕΤΙΚΑ ΠΡΟΪΟΝΤΑ
Επικοινωνήστε μαζί μας
86-021-61195255
Επικοινωνήστε τώρα
Περιγραφή του προϊόντος

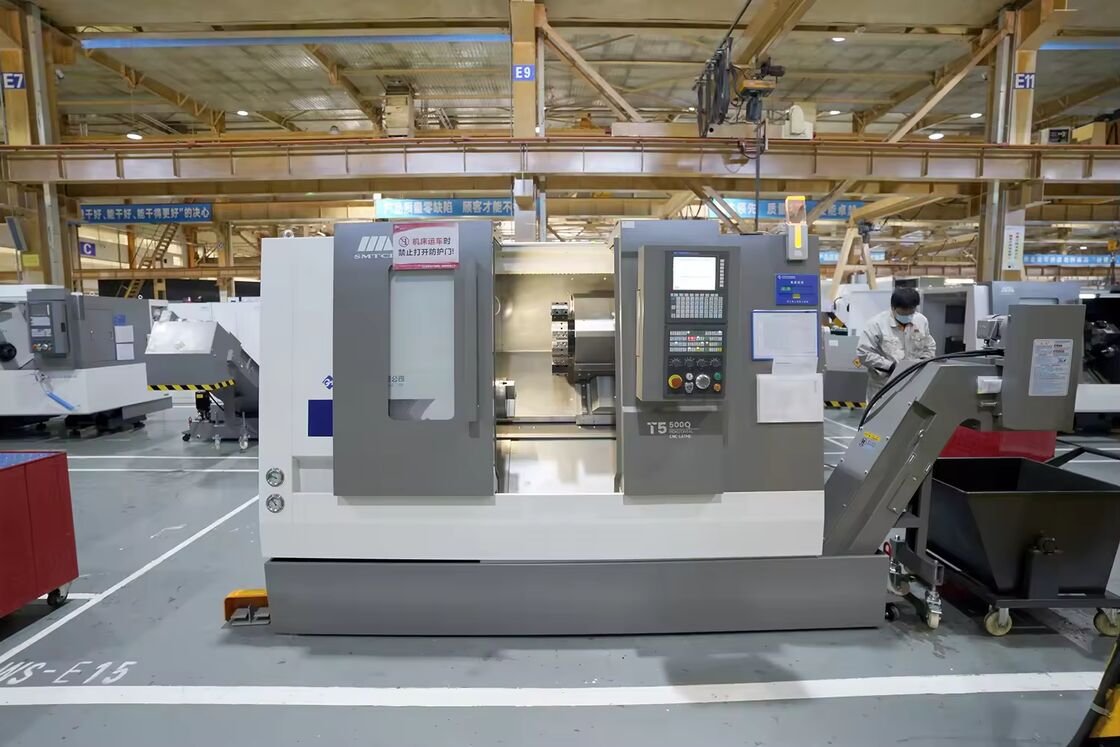

SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center 0

Product Description:

SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center

T5.2-500Q series horizontal CNC Turning Center, combining intelligent control technology and advanced manufacturing technology, has high precision, high efficiency and high cutting rigidity. The finite element analysis software is used to optimize the design, analyze the distribution of stress points, reduce the deformation of parts, and achieve the optimal structure of the whole machine. The main castings are all made of high-strength cast iron materials, which ensures the minimization of vibration during the cutting process and improves the machining accuracy and cutting stability.

Product Features:

1,High Precision

♦ C3 pre-drawn lead screw
♦ Error compensation technology
♦ Process standard quantification
2,High Efficiency
♦ Two axes high and fast moving speed
♦ Split servo tail
♦ High efficiency servo cutter tower
3,High Rigidity
♦ High-quality cast iron bed and other key castings
♦ Large span double row cylindrical roller spindle bearing
♦Anti-bending saddle structure
Product Details:

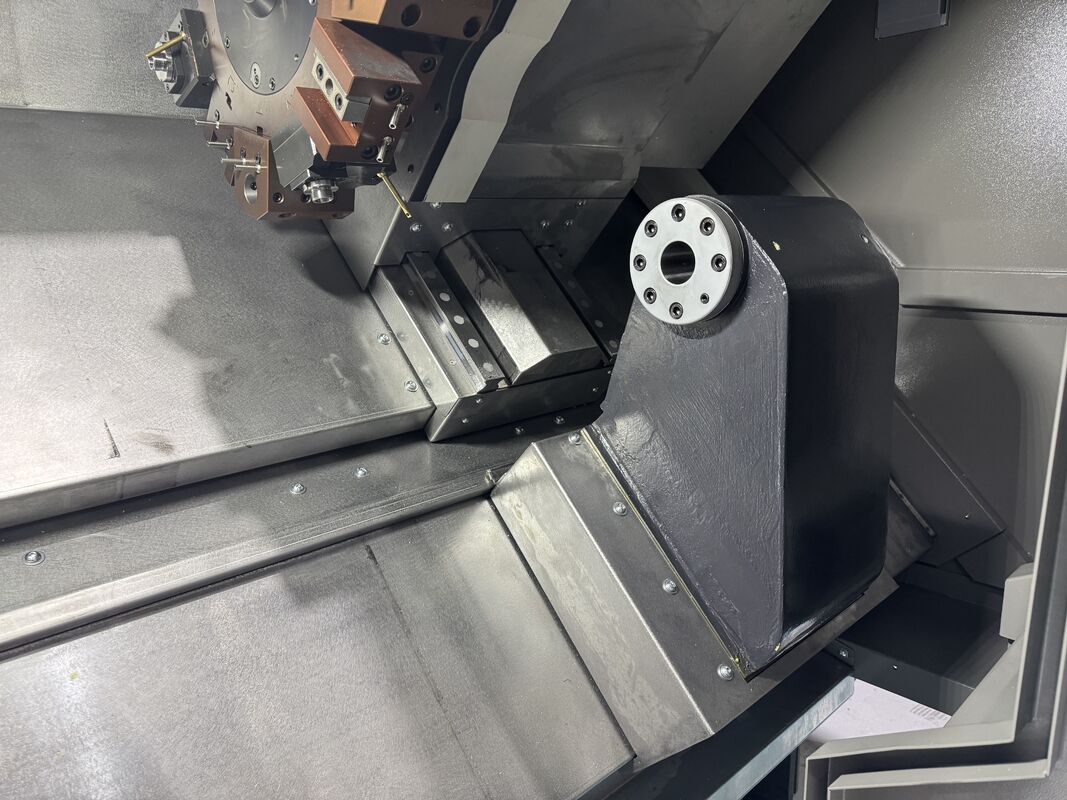

SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center 1

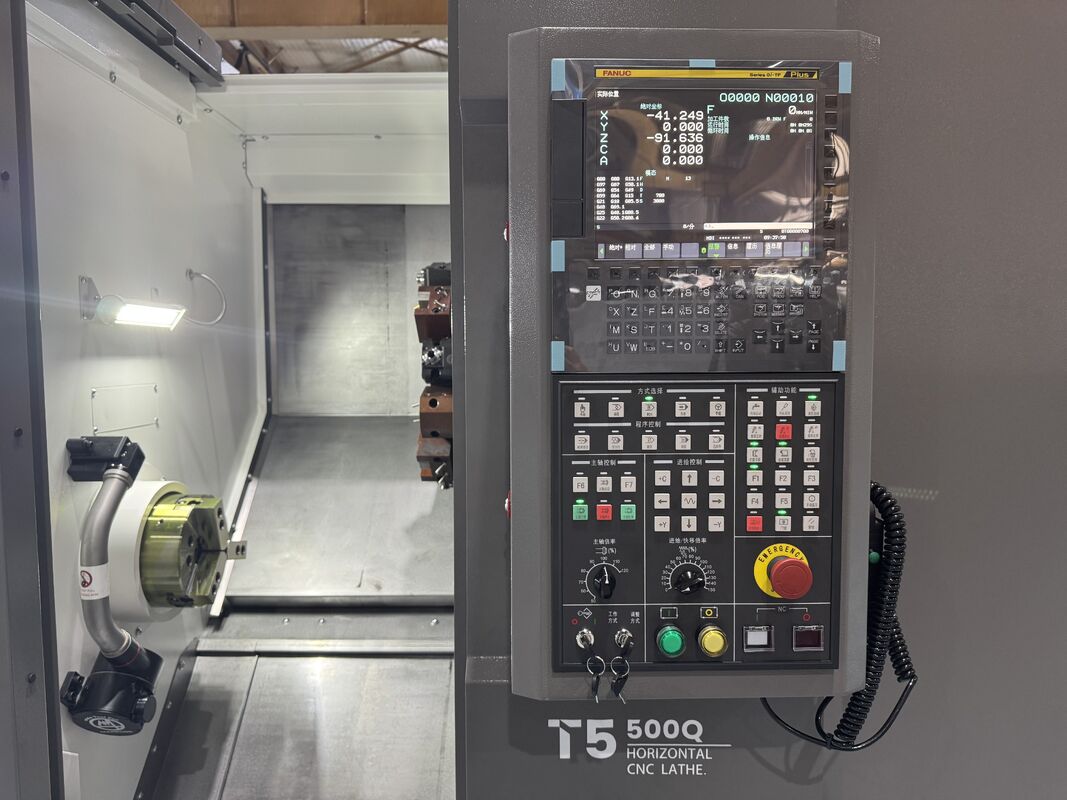

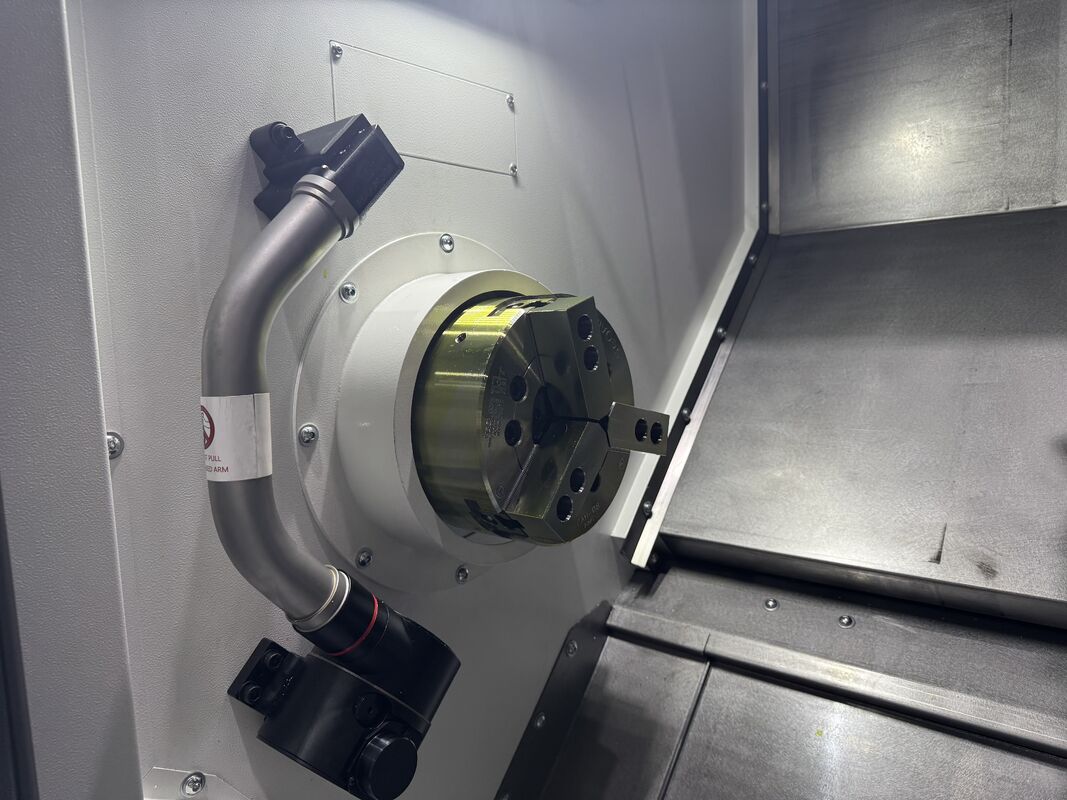

SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center 2 SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center 3SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center 4SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center 5

Product Paramenters:
Item
Unit
T5-500Qm
Max. turning diameter
mm
280
Max. turning length
mm
450
Max.swing diameter over bed
mm
Φ560
Max.swing diameter over cross slide
mm
Φ350
Spindle
Type of spindle nose

A2-6
Inner diameter of front bearing
mm
Φ100
Taper of spindle bore

1:20;Φ70
Spindle bore
mm
Φ65
Max. through bar diameter
mm
Φ50
Standard chuck diameter
inch
8
Max. spindle speed
r/min
4500
Spindle rated torque
Nm
130
Max. spindle torque
Nm
230
Main motor output power continuous /30 minutes
kW
11/15
Two axis
Rapid traverse of X/Z axis
m/min
30
X axis travel
mm
170
Z axis travel
mm
560
Tailstock
Tailstock travel
mm
500(Servo drive)
Tailstock quill taper
Morse
MT-5
Turret
Turret form

Horizontal 12 -station servo powered tool holder
Center height of turret
mm
80
Turret rotation repeat positioning accuracy
Sec.
±1.6
Whether the cutter can be selected nearby

yes
End face tool holder
mm
25×25
Boring tool holder
mm
Φ40
Reduction sleeve
mm
f32
Other
Distance from spindle center to bed bottom
mm
1015
Machine net weight
kg
4200
Total power supply capacity
kVA
35
Overall dimensions (Length X width X height)
mm
2750×1890×1900

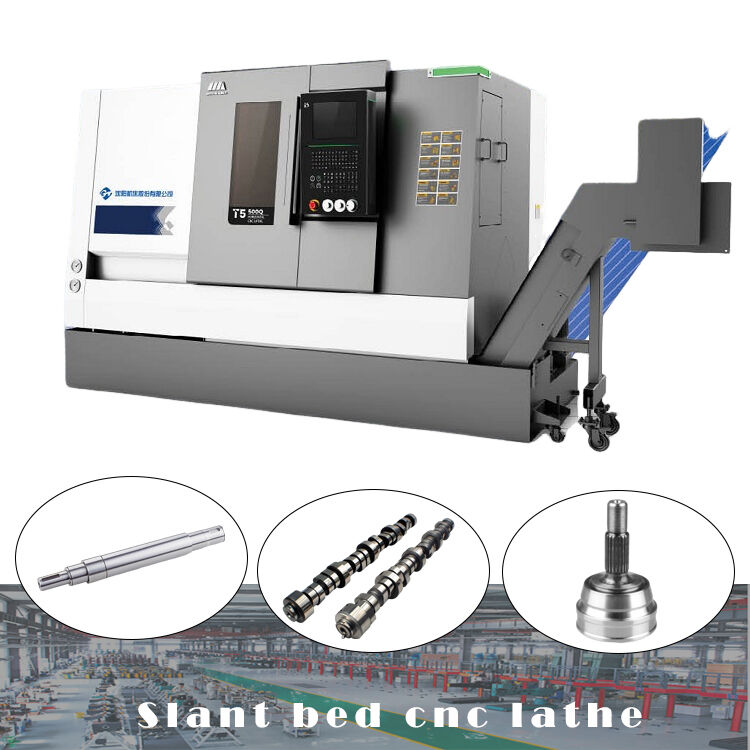

Industry application:
SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center 6

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center 7
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!O
Our Factory:
SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center 8

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
